Name: RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF400C
Availability: InStock

خونه > محصولات > دستگاه حفاری چاه آب >

RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig

400-meter deep water well drilling rig

professional water well drilling machine

multi-functional deep well drilling rig

محل منبع:

چین

نام تجاری:

RanCheng

گواهی:

CE, ISO 9001:2000

شماره مدل:

RCF400C

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

قطر لوله:

89mm/102mm

قطر سوراخ (چکش):

140 تا 350 میلی متر

عمق حفاری:

400 متر

ظرفیت بالابر بالابر:

حداکثر گشتاور چرخشی:

6200-9000 نیوتن متر

موتور دیزل:

موتور یوچای 92 کیلووات

برجسته کردن:

400-meter deep water well drilling rig

professional water well drilling machine

multi-functional deep well drilling rig

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

قیمت

قابل مذاکره

جزئیات بسته بندی

می توان آن را با یک کانتینر 20 اینچی حمل کرد

زمان تحویل

10-15 روز کاری

شرایط پرداخت

T/T، وسترن یونیون

قابلیت ارائه

100 مجموعه در ماه

محصولات مرتبط

ویدیو

سیلندر دریل هیدرولیک کوچک با عمق 160 متر، دستگاه حفاری چاه آب، شنی‌دار

بهترین قیمت رو بدست بیار

ویدیو

ماشین حفاری چاه آب 1000 متر 105mm - 800mm Dia 179KW

بهترین قیمت رو بدست بیار

ویدیو

تجهیزات حفاری چاه آب هیدرولیک پنوماتیک 500 متر عمق حفاری 118KW موتور

بهترین قیمت رو بدست بیار

ویدیو

تجهیزات حفاری چاه آب با عمق 800 متر 153KW موتور 140mm - 500mm قطر

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig

The RCF400C deep-water well drilling rig is a new generation of drilling equipment independently developed by our company. The machine is equipped with a high-power down-the-hole (DTH) pneumatic power unit, integrated with an advanced hydraulic system, offering such advantages as rapid drilling speeds, low energy consumption, high rotational torque, and convenient hole deviation correction.

Constructed from high-quality raw materials, the unit features a compact and streamlined body structure; it operates with exceptional stability, exhibits a low failure rate, and offers outstanding durability, cost-effectiveness, and overall value. This model is widely applicable to various drilling projects, including resource exploration, hydrogeological drilling, the construction of civil drinking water wells, and agricultural irrigation systems. Thanks to its superior performance capabilities, the equipment has successfully passed rigorous field testing and has garnered unanimous recognition and acclaim from clients worldwide.

Technical Specifications

Parameter	Specification
Bore Diameter (Hammer)	140-350mm
Bore Depth	400m
Air Consumption	17-36m³/min
Air Pressure	1.7-3.5Mpa
Pipe Diameter	89mm/102mm
Pipe Length	1.5m/2m/3m/6m
Lifting Force	22T
Lifting Speed	3m/min
Feeding Speed	0.5-5m/min
Fast Lifting Speed	20m/min
Fast Feeding Speed	40m/min
Max Torque of Rotary	6200-9000Nm
Rotary Speed	66-135r/min
Hoist Lifting Capacity	2T
Mud Pump Flow	450L/min (option)
High Hydraulic Leg	1.4m
Feeding Efficiency	15-35m/h
Travel Speed	2.5Km/h
Climb Ability	30°
Dimension (L×W×H)	6000×2100×2550mm
Weight	9200Kg
Diesel Engine	92KW Yuchai Engine
Drilling Method	Air Compressor Drilling or Mud Pump Drilling

Key Features & Benefits

1. Fully Hydraulic, Flexible Control: Efficient and Hassle-Free Operation
The machine features a fully hydraulic top-drive design, allowing for independent adjustment of rotation speed, torque, and axial pressure. Drill pipe assembly and disassembly are simple, minimizing auxiliary operation time. Compatible with a wide range of drilling techniques, it delivers rapid drilling speeds and high construction efficiency.
2. High Adaptability, Lower Construction Costs
It supports various drilling methods—including DTH (Down-the-Hole), reverse circulation, and core drilling—and is compatible with a wide array of accessories. Equipped with crawler tracks and extended outriggers, it navigates muddy terrain smoothly and can self-load and unload without the need for a crane. The DTH drilling process lowers the cost per meter of drilling, offering exceptional value for money.
3. Premium Configuration: Stable and Durable Performance
Core hydraulic components are sourced from renowned brands, while the machine body is constructed from high-strength steel. It supports both positive and negative axial pressure adjustment, ensuring optimal impact efficiency at all times. Furthermore, it offers a choice between crawler-mounted and truck-mounted chassis options to suit diverse construction environments.

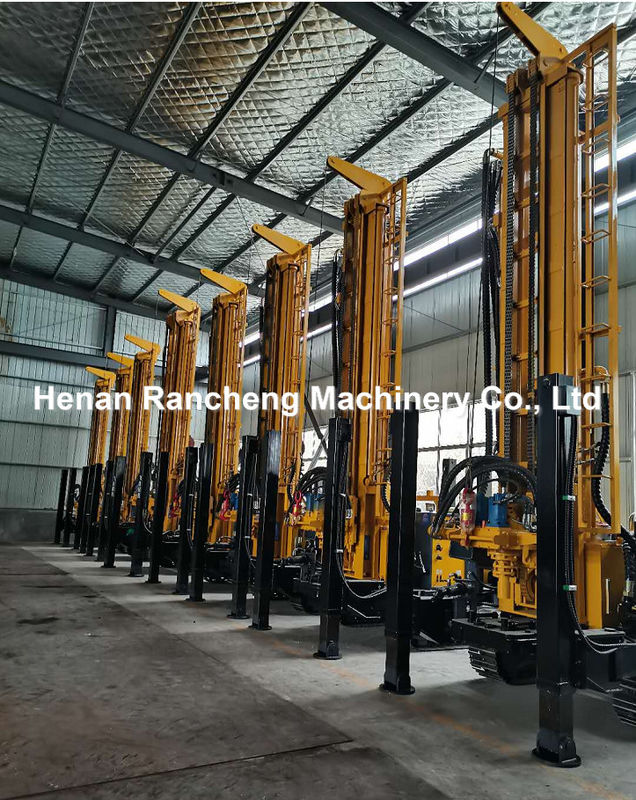

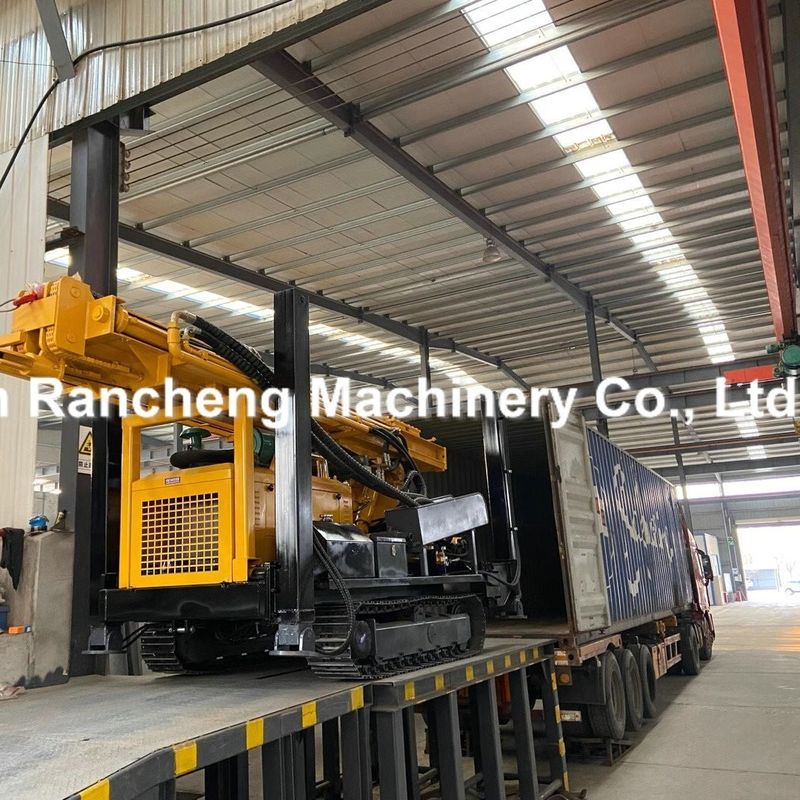

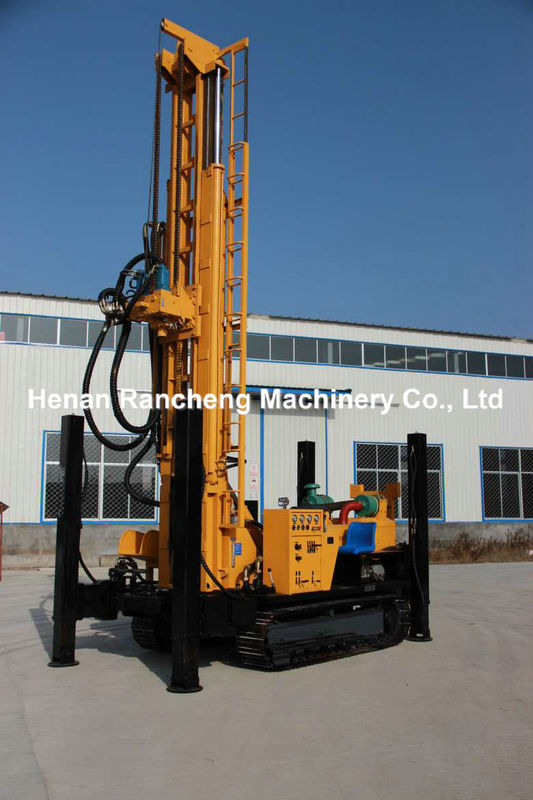

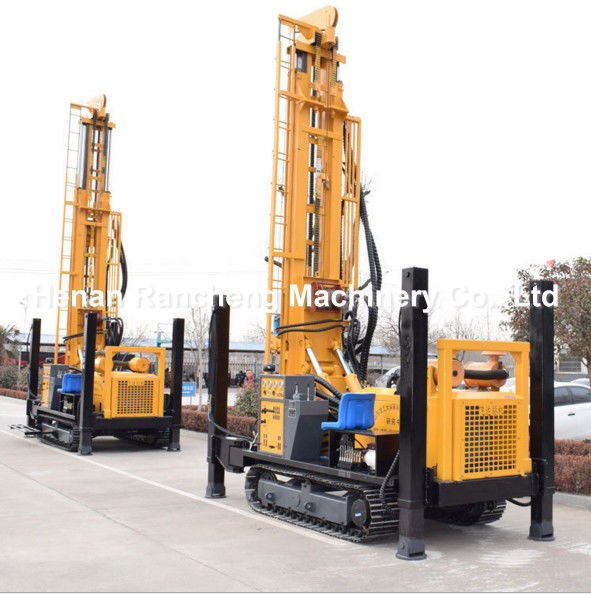

Product Images
