Name: 300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ-1
Price: 8,500.00 USD
Availability: InStock

خونه > محصولات > تجهیزات زمین شناسی >

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy

300m borehole water well log tool,geophysical equipment apparent resistivity measurement,borehole log tool 1% accuracy

geophysical equipment apparent resistivity measurement

borehole log tool 1% accuracy

محل منبع:

چین

نام تجاری:

RanCheng

گواهی:

CE, ISO 9001:2000

شماره مدل:

RCQ-1

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

منبع تغذیه خارجی:

AC 220V ± 20 ٪ ، 50Hz ، 20W

وضعیت کار:

دما: -20 ºC ~ +40 ºC ، رطوبت 90 ٪

منبع تغذیه AB:

6 60 ولت ، 0 ~ 200 میلی آمپر ، موج مربع AC

سیستم الکترود قابل اجرا:

A1.6m 0.4n

دامنه اندازه گیری مقاومت ظاهری:

1-2000 گرم

دقت اندازه گیری مقاومت ظاهری:

1 ٪ (مقیاس)

برجسته کردن:

300m borehole water well log tool,geophysical equipment apparent resistivity measurement,borehole log tool 1% accuracy

geophysical equipment apparent resistivity measurement

borehole log tool 1% accuracy

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

قیمت

US $ 7000-10000

جزئیات بسته بندی

می توان آن را با یک ظرف 20 اینچی حمل کرد

زمان تحویل

10-15 روز کاری

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

100Set در ماه

محصولات مرتبط

ویدیو

Digital Logging System Specially Designed For The Convenience Of Field Work

بهترین قیمت رو بدست بیار

ویدیو

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy

بهترین قیمت رو بدست بیار

ویدیو

تجهیزات لاگ چاه آب، ابزار لاگینگ چاه، ابزار لاگینگ چاه ژئوفیزیکی، ابزار لاگینگ چاه

بهترین قیمت رو بدست بیار

ویدیو

300 متر تجهیزات ژئوفیزیکی حفره آب چاه چوب ابزار مقاومت ظاهری اندازه گیری سیستم ثبت

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy

Product Description

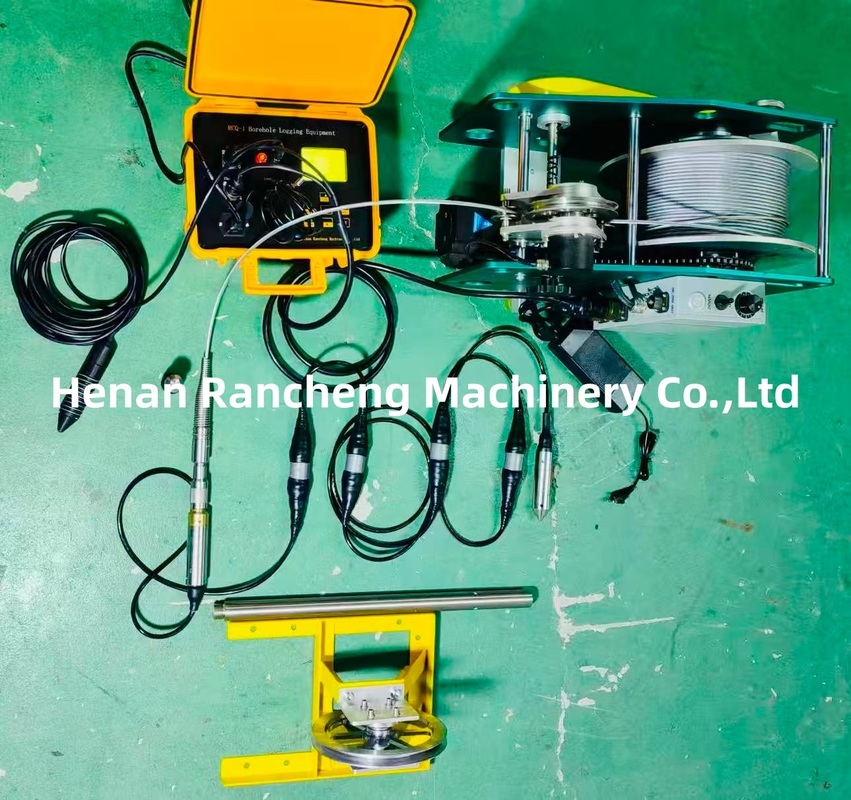

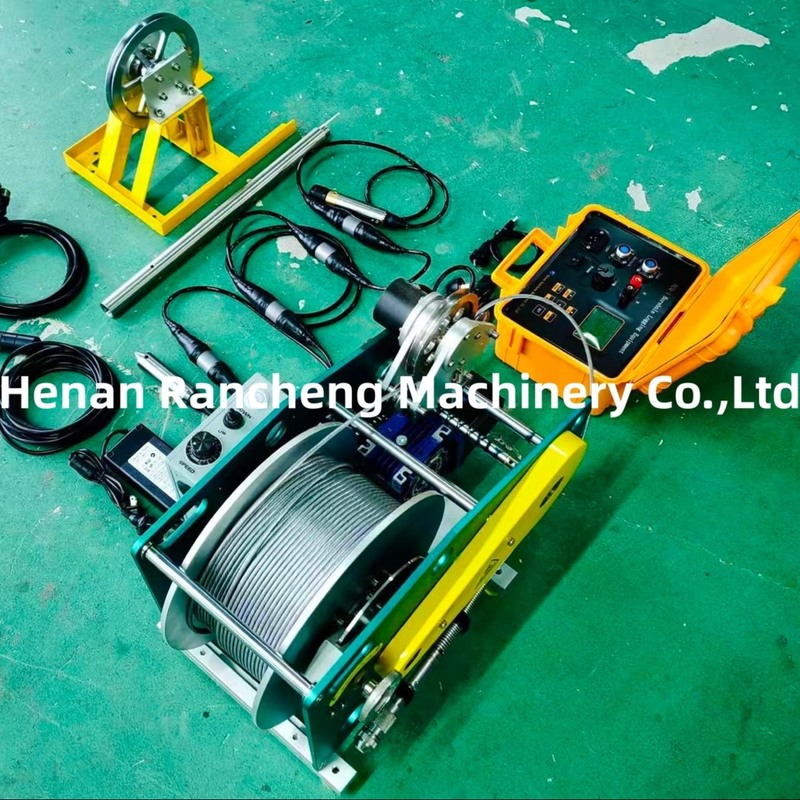

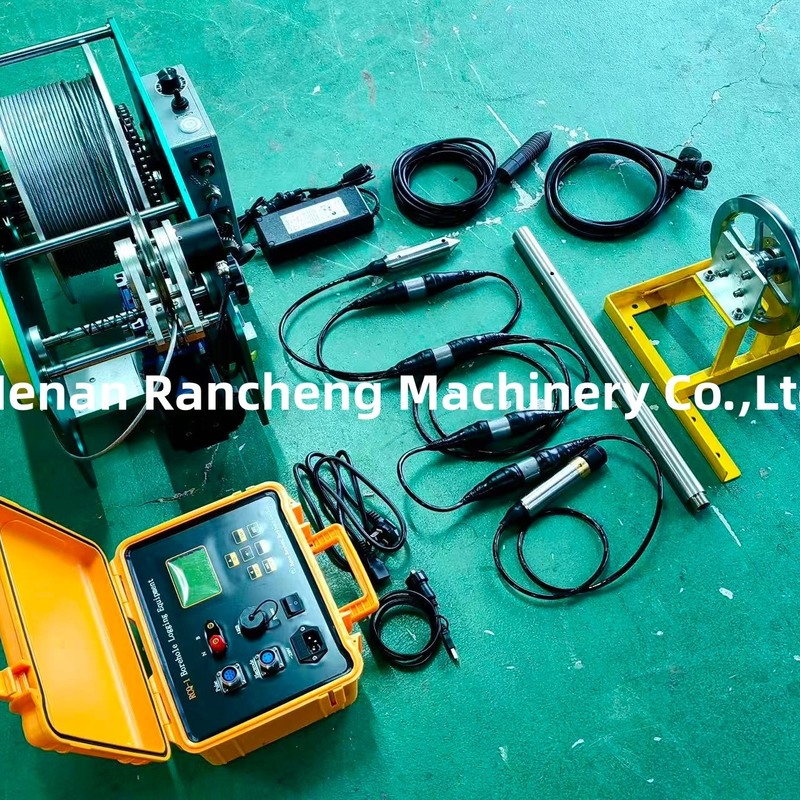

The RCQ-1 Geophysical Coring Drill is a reliable geophysical coring instrument for measuring apparent resistivity and spontaneous potential in boreholes. It consists of a surface instrument, a Kevlar cable, an electric winch, and a probe with downhole electrodes, ensuring accurate and stable data acquisition. The system utilizes an adaptive power supply scheme, delivering an AC square wave to the formation while simultaneously measuring current and voltage. This enables accurate resistivity recording over a wide measurement range.

The RCQ-1 is lightweight and easy to use, connecting directly to a PC for real-time data recording, transmission, and plotting. It is widely used in applications requiring reliable borehole resistivity data, such as groundwater exploration, mineral exploration, engineering geology, and geotechnical investigations.

Technical Specifications

No.	Item	Parameter
1	External Power Supply	AC 220V ± 20%, 50Hz, 20W
2	Working Condition	Temperature: -20 ºC ~ +40 ºC, humidity ≤ 90%
3	AB Power Supply	6~60V, 0~200mA, AC square wave
4	Applicable Electrode System	A1.6M 0.4N
5	Apparent Resistivity Measurement Range	1-2000Ωm
6	Apparent Resistivity Measurement Accuracy	1% (scale)
7	Natural Potential Measurement Range	±1200mv
8	Natural Potential Measurement Accuracy	1%
9	Signal Output	USB interface
10	Depth Measurement	0 ~ 9999.99 meters
11	Depth Measurement Accuracy	better than 0.1%
12	Speed Measurement Range	0 ~ 9999 meters / hour
13	Speed Measurement Accuracy	better than 5%


300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy 0

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy 1

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy 2

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy 3

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy 4

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy 5
