Crawler Mounted Full Hydraulic Core Drilling Rig Underground With 77.3KW Yuchai Engine

Crawler mounted core drilling rig,Full hydraulic core drilling rig,Core drilling rig with Yuchai engine

Full hydraulic core drilling rig

Core drilling rig with Yuchai engine

محل منبع:

چین

نام تجاری:

RanCheng

گواهی:

CE, ISO 9001:2000

شماره مدل:

RCKY-2A

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

عمق حفاری:

150 متر (HTW)

مدل موتور دیزل:

موتور یوچای 4 سیلندرهای 77.3 کیلو وات

سرعت:

2200 دور در دقیقه

نیروی بلند کردن:

200KN

برجسته کردن:

Crawler mounted core drilling rig,Full hydraulic core drilling rig,Core drilling rig with Yuchai engine

Full hydraulic core drilling rig

Core drilling rig with Yuchai engine

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

قیمت

USD15000-USD16000

جزئیات بسته بندی

حمل و نقل استاندارد

زمان تحویل

10-15 روز کاری

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

100Set در ماه

محصولات مرتبط

ویدیو

سنگ معدن الماس RCJ1000C هسته حفاری رینگ جیوتکنولوژیک حفاری رینگ اکتشافی حفاری رینگ

بهترین قیمت رو بدست بیار

ویدیو

1800 متري BTW محوطه حفاري هسته اي ماشين هيدروليکي کامل با موتور کامينز 154 کيلووايت

بهترین قیمت رو بدست بیار

ویدیو

دکل حفاری نمونه‌برداری هسته‌ای هیدرولیکی 600 تا 1000 متر با NQ/BQ/HQ/PQ

بهترین قیمت رو بدست بیار

ویدیو

دستگاه حفاری هسته الماس کاملا هیدرولیک و پنوماتیک برای نمونه گیری خاک و معدن

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Crawler Mounted Full Hydraulic Core Drilling Rig Underground With 77.3KW Yuchai Engine

Name: Crawler Mounted Full Hydraulic Core Drilling Rig Underground With 77.3KW Yuchai Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCKY-2A
Price: 15,500.00 USD
Availability: InStock

Machine Introduction

The series full hydraulic core drilling rig is a new type developed by our company on the basis of referring to the advanced technology of similar drilling rigs at home and abroad rig. The drilling rig is driven by full hydraulic pressure, the rotation of the power head is driven by an axial plunger pump and an inclined-axis plunger motor, two mechanical gears plus stepless speed regulation, and an advanced structure.

The power head adopts an oil cylinder chain double-speed feeding mechanism, which is stable and reliable in movement, and has a lateral translation mechanism of the power head. The mast adopts an oil cylinder to lift and fall to slide as a whole, and can drill holes within the range of 0-90°. The hydraulic system adopts load sensitive control, with high working efficiency and large torque.Remote control crawler, suitable for various terrains, control the crawling of the drilling rig within a safe distance to prevent sudden danger.

Technical Parameters

RCKY-2A full hydraulic core drilling rig
Working stratum	Loose soil layer and bed rock(hardness:F6~20)
Drilling capacity	BTW (m)	280
	NTW (m)	200
	HTW (m)	150
Hydraulic system	Rated pressure Mpa	32+16
	Cooling way	secondary air cooling plus primary water cooling
Power	Diesel engine model	Yuchai engine 4 cylinders 77.3KW
	Rated power	77.3KW
	Rated speed	2200rpm
Rotary head	Max torque	1400N.m
	rotary speed	0-1400rpm
	Feeding stroke	1.5-3.4m
	through-hole	95
	Lifting force	200KN
	Feeding force	120KN
Wireline hydraulic Winch capacity	Rope capacity	300m
	Lifting force	1.5T
	Lifting speed	110m/min
	Rope diameter	5mm
Mast	Full height	6.1m
	Drilling angle	40-90°
Clamp (hydraulic )	through-hole	75mm/91mm/115mm
Mud pump (hydraulic )	Model	BW100
	type	Horizontal three cylinder reciprocating single acting piston pump
	Cylinder diameter	65mm
	stroke	50mm
	Pump speed (times/min)	220	156	115
	Flow (L/min)	90	65	50
	Pressure (Mpa	1	2	3
	Outlet pipe diameter	25mm
	Inlet pipe diameter	38mm
Crawler chassis	Walking speed	0~2km/h
	Climbing angle	25°-30°
Dimension	Transport	600023002200mm
Weight		4000kg

Machine Advantages

Application

It is mainly suitable for drilling solid mineral deposits, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, and can also be used for drilling holes for tunnel ventilation, drainage and dam grouting.

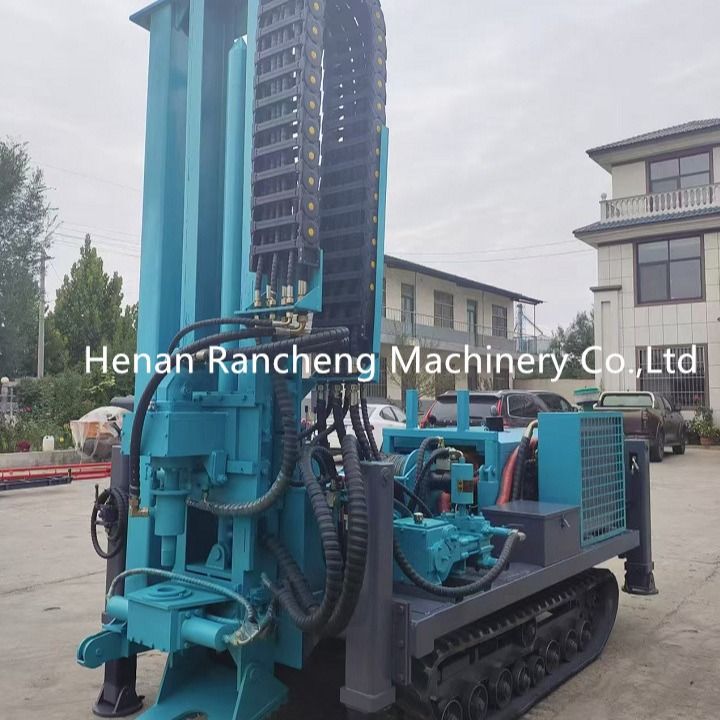

Crawler Mounted Full Hydraulic Core Drilling Rig Underground With 77.3KW Yuchai Engine 0

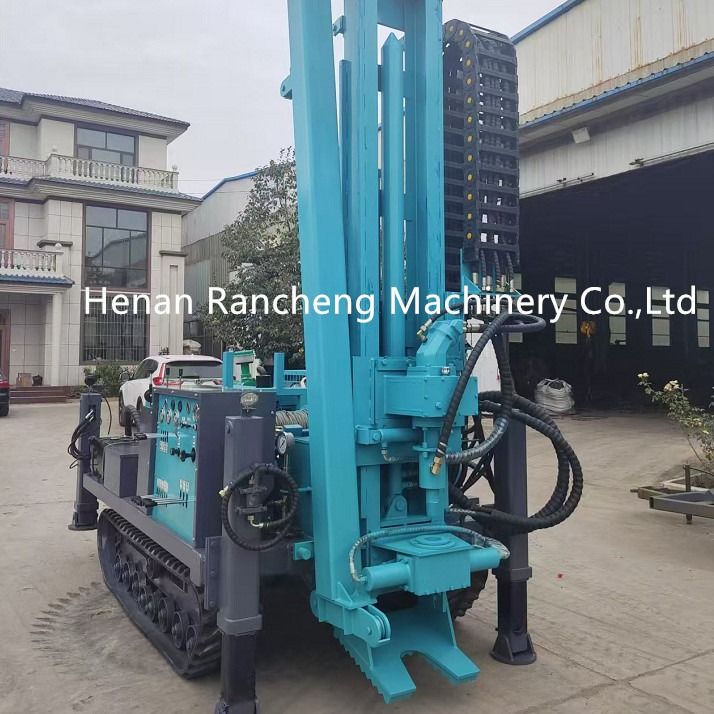

Crawler Mounted Full Hydraulic Core Drilling Rig Underground With 77.3KW Yuchai Engine 1

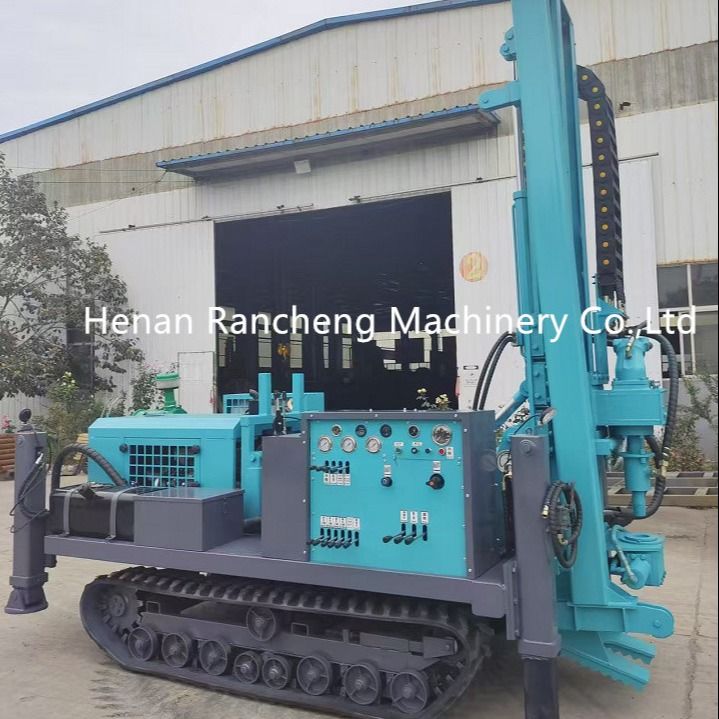

Crawler Mounted Full Hydraulic Core Drilling Rig Underground With 77.3KW Yuchai Engine 2

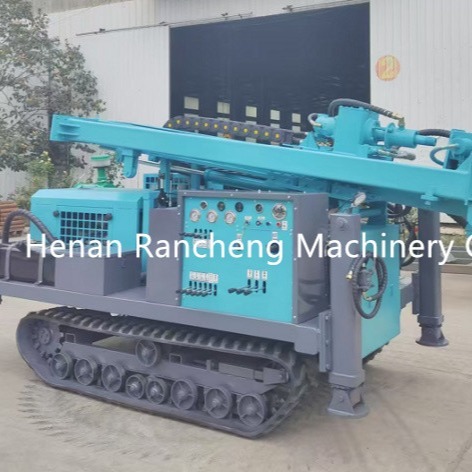

Crawler Mounted Full Hydraulic Core Drilling Rig Underground With 77.3KW Yuchai Engine 3
