Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale

small hydraulic drilling rig,wheel type borehole machine,200m water drilling rig

wheel type borehole machine

200m water drilling rig

محل منبع:

چین

نام تجاری:

RanCheng

گواهی:

CE, ISO 9001:2000

شماره مدل:

RCS200W

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

مدل:

RCS200W

زمین شناسی حفر:

همه نوع

عمق حفاری:

200 متر

قطر حفاری:

90-300 میلی متر

سیستم مته و عملیات:

وابسته به هیدرولیکی

برای سنگ:

6-20f

برجسته کردن:

small hydraulic drilling rig,wheel type borehole machine,200m water drilling rig

wheel type borehole machine

200m water drilling rig

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

قیمت

USD6580-12000

جزئیات بسته بندی

حمل و نقل استاندارد

زمان تحویل

10-15 روز کاری

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

100Set در ماه

محصولات مرتبط

ویدیو

Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale

بهترین قیمت رو بدست بیار

ویدیو

RCF300WT Hydraulic Tractor Mounted Water Well Drilling Machine 100HP

بهترین قیمت رو بدست بیار

ویدیو

260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment

بهترین قیمت رو بدست بیار

ویدیو

ماشین حفاری سوراخ های فراگیر با کارایی بالا با چهار چرخ در حال نصب در عمق 220 متر موتور 65KW قدرتمند

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine For Sale

Name: Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCS200W
Price: 9,290.00 USD
Availability: InStock

Product Description

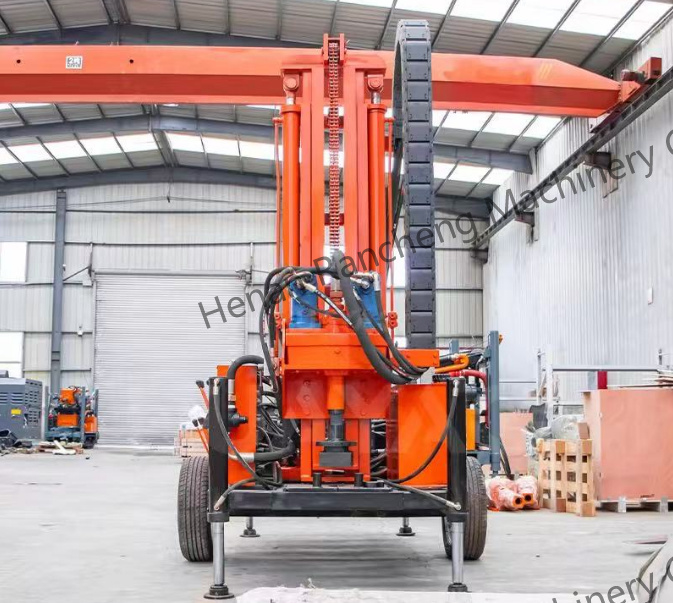

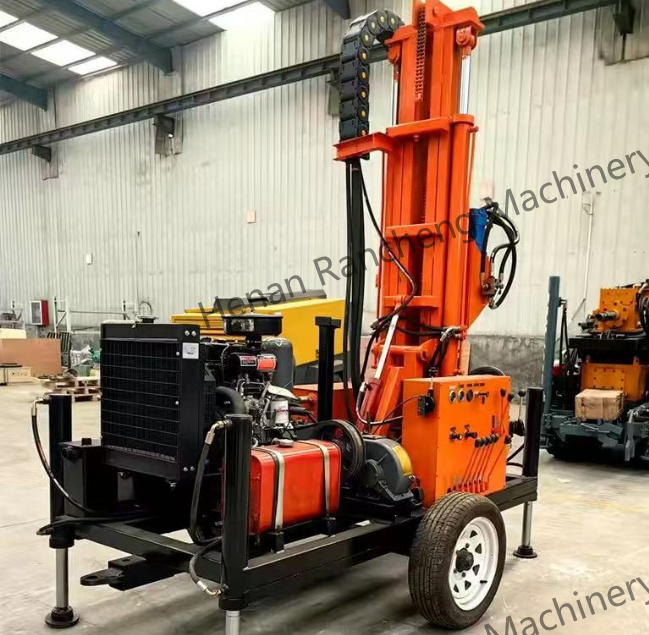

The RCS200W small water well drilling rig is mounted on a trailer. It uses advanced hydraulic technology, a top-mounted drive, and is powered by a mud pump and air compressor.

This compact, fully hydraulic drilling rig is designed for downhole and rotary drilling up to 200 meters. Lightweight, powerful and versatile, it uses air, foam or mud for rotation and drilling, depending on the conditions.

Technical data

Model	RCS200W
Geology drilled	All kinds
Drill depth	200 m
Drilling Diameter	90 -300mm
Drill system and operation	Hydraulic
For rock	6-20F
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Rotary head
Rotation Torque	4000-5000N.m
Rotation speed	80-200rpm
Lifting capacity	14000KGS
Pull down capacity	4000KGS
DRILL PIPE
Drill pipe length	2 meter
Drill pipe diameter	60/76/89 mm
MUD PUMP
Flow capacity	160 liter/min
working pressure	1.3MPA
DIMENSIONS
Transport size	230012001700mm
Weight	2300KGS
Diesel engine
Power	45KW Weifang Hengtong

Application:

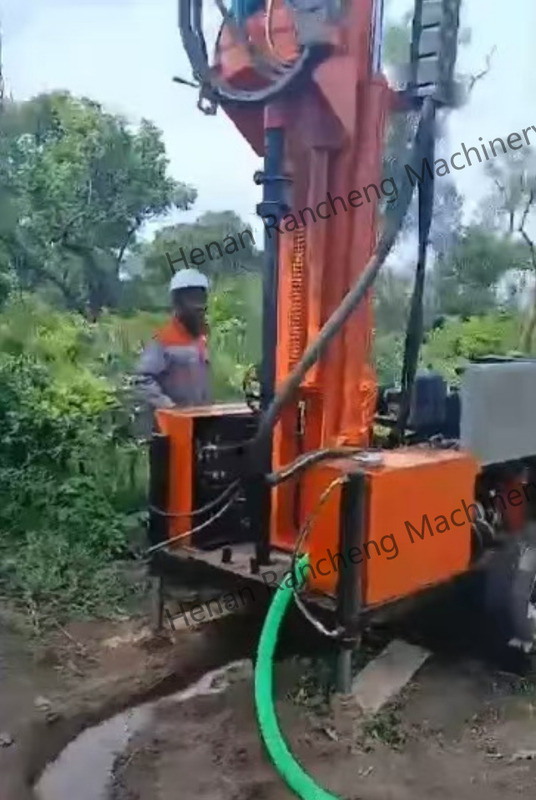

This hydraulic water well drilling machine is widely used in industrial and agriculture water project,farm irrigation well drilling ,home use well drilling ,geothermal well drilling ,inspect well and other exploration borehole drilling.
