Name: 200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: دستگاه حفاری چاه آب قابل حمل RCS200C
Price: 3,130.00 USD
Availability: InStock

خونه > محصولات > دستگاه حفاری چاه آب قابل حمل >

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity

200m small water well drilling rig,portable water well drilling machine with 2000KG capacity,rock drilling rig for water wells

portable water well drilling machine with 2000KG capacity

rock drilling rig for water wells

محل منبع:

چین

نام تجاری:

RanCheng

گواهی:

CE, ISO 9001:2000

شماره مدل:

دستگاه حفاری چاه آب قابل حمل RCS200C

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

نام:

RCS200C دکل حفاری چاه آب قابل حمل

حفاری عمیق:

200 متر

قطر مته (میلی متر):

در عرض Ø 450mm

ظرفیت میزبانی (کیلوگرم):

2000 کیلوگرم

برجسته کردن:

200m small water well drilling rig,portable water well drilling machine with 2000KG capacity,rock drilling rig for water wells

portable water well drilling machine with 2000KG capacity

rock drilling rig for water wells

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

قیمت

USD2980-USD3280

جزئیات بسته بندی

حمل و نقل استاندارد

زمان تحویل

10-15 روز کاری

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

100Set در ماه

محصولات مرتبط

ویدیو

حداکثر عمق 200 متر، دستگاه حفاری چاه آب کوچک با شنی لاستیکی RCS200C

بهترین قیمت رو بدست بیار

ویدیو

ماشین حفاری هیدرولیک آب برای چاه آبیاری 150 متری

بهترین قیمت رو بدست بیار

ویدیو

Easy Operation RCS200C Rubber Crawler Portable Drilling Rig With 150m Depth 450mm Diameter

بهترین قیمت رو بدست بیار

ویدیو

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity

Product Description

With a drilling depth of up to 200 meters and a diameter range of 100 to 450 mm, this drill can easily handle a wide range of projects. Equipped with a powerful 22-horsepower diesel engine, the RCS200C delivers reliable performance in a variety of geological formations, allowing you to complete your work efficiently.

In short, the RCS200C crawler-mounted portable drill is designed for users who value efficiency, reliability, and ease of use. Whether you're drilling for agriculture or providing clean water for your home, this drill delivers exceptional results. Explore the unique features of the RCS200C and join the ranks of satisfied users who have made it their favorite. Get ready to take your water well drilling projects to the next level!

Product Specifications

Model	RCS200C
Geology drilled	All kinds
Drill depth	200 m
Drilling Diameter	90 -300mm
Drill system and operation	Hydraulic
For rock	6-20F
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Rotary head
Rotation Torque	4000-5000N.m
Rotation speed	80-200rpm
Lifting capacity	14000KGS
Pull down capacity	4000KGS
DRILL PIPE
Drill pipe length	2 meter
Drill pipe diameter	60/76/89 mm
MUD PUMP
Flow capacity	160 liter/min
working pressure	1.3MPA
DIMENSIONS
Transport size	230012001700mm
Weight	2000KGS
Diesel engine
Power	45KW Weifang Hengtong

Applications

This water well drilling rig is primarily used for geothermal drilling, agricultural irrigation, and for drilling holes in courtyards, gardens, and water wells. It is suitable for drilling holes with diameters ranging from 70-450mm and a maximum depth of 200m. It can also be used for smaller structural supports in farms or factories, with a drilling diameter of up to 450mm. It is suitable for various strata, including sand, soil, clay, and soft rock.

Product Image

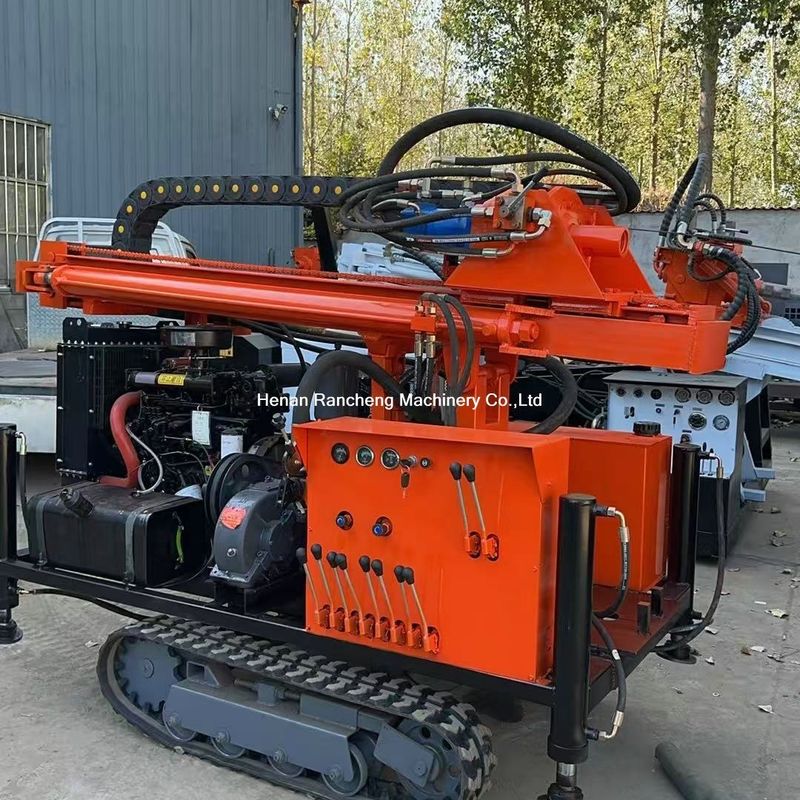

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 0

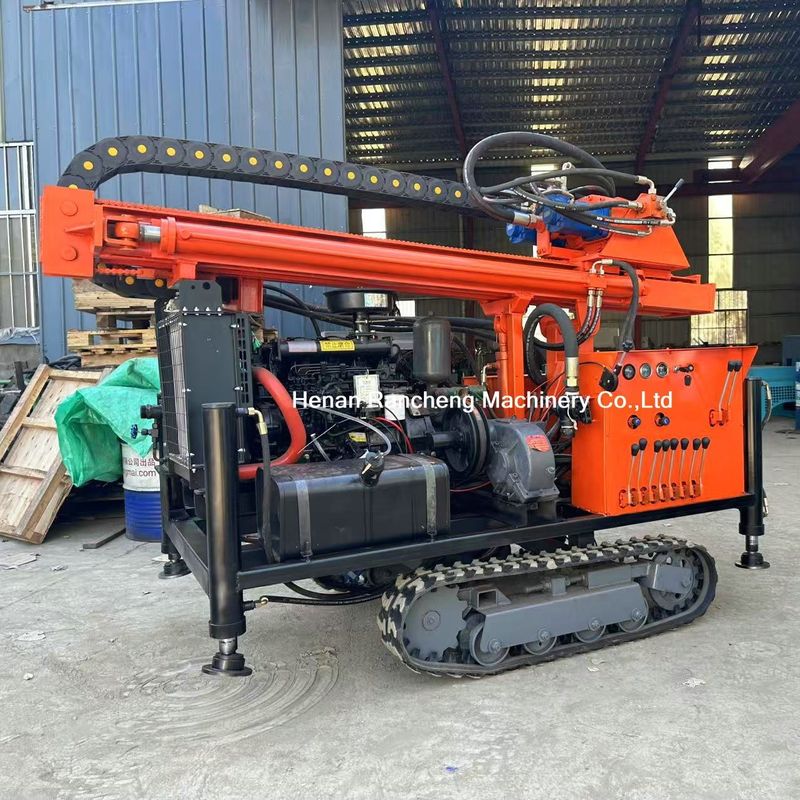

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 1

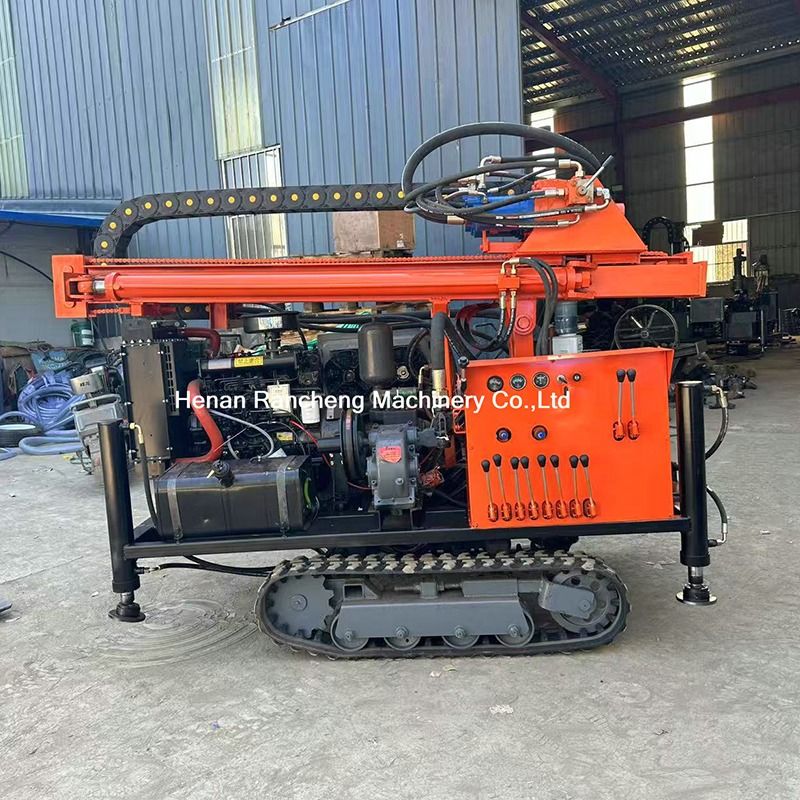

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 2

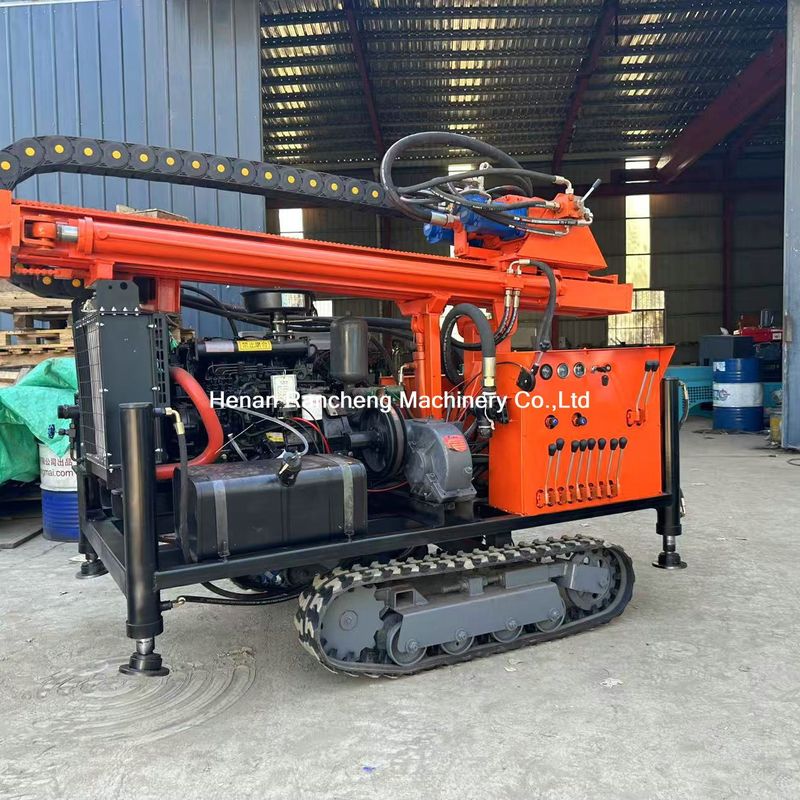

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 3
