Name: 350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF350c
Price: 34,860.00 USD
Availability: InStock

خونه > محصولات > دستگاه حفاری چاه آب >

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

350m hydraulic water well drill rig,portable crawler drilling rig machine,diesel borehole drilling equipment

portable crawler drilling rig machine

diesel borehole drilling equipment

محل منبع:

چین

نام تجاری:

RanCheng

گواهی:

CE, ISO 9001:2000

شماره مدل:

RCF350c

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

نام:

350m 450m 500m 500m هیدرولیک دیزل دیزل سوراخ چاه آب حفاری تجهیزات دکل قابل حمل آب خزنده قابل حمل دست

مدل:

RCF350c

عمق حفره:

350 میلیون

مصرف هوا:

17-36 متر مکعب در دقیقه

فشار:

1.7-3.5MPa

ابعاد (L*W*H):

6000 × 2000 × 2550 میلی متر

برجسته کردن:

350m hydraulic water well drill rig,portable crawler drilling rig machine,diesel borehole drilling equipment

portable crawler drilling rig machine

diesel borehole drilling equipment

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

قیمت

USD29860-USD39860

جزئیات بسته بندی

می توان آن را با یک ظرف 20 اینچی حمل کرد

زمان تحویل

10-15 روز کاری

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

100Set در ماه

محصولات مرتبط

ویدیو

RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig

بهترین قیمت رو بدست بیار

ویدیو

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

بهترین قیمت رو بدست بیار

ویدیو

680m crawler drilling Hydraulic water well drilling rig multi functional drilling equipment with 154KW cummins engine

بهترین قیمت رو بدست بیار

ویدیو

Multifunctional 800m Deep Hydraulic Crawler Drilling Machinery

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

Product Description

The RCF350C deepwater well drilling rig is a product independently developed by our company.
Made of high-quality materials and featuring a stylish and compact design, our rig boasts higher efficiency, lower failure rates, greater cost-effectiveness and durability, and offers a superior overall cost-effectiveness. Our water well drilling rigs have been well-recognized in the market and received positive feedback from our customers.

Our water well drilling rigs utilize the latest models and advanced hydraulic technology, offering low energy consumption, high torque, and convenient well positioning. The combination of a new-generation down-the-hole hammer and increased pneumatic power significantly increases drilling speed.

Technical Parameters

Model	RCF350C
Bore diameter(Hammer)	140-350mm
Bore depth	350m
Air consumption	17-35m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	89mm/102mm
Pipe length	1m/2m/3m/6m
Lifting force	22T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	30m/min
Fast feeding speed	50m/min
Max torque of the rotary	6200-8500Nm
Rotary speed	55-115r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6000×2000×2550mm
Weight	8600Kg
Diesel engine	91KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling
Operating system	Full hydraulic operation

Application

The water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

After service

We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

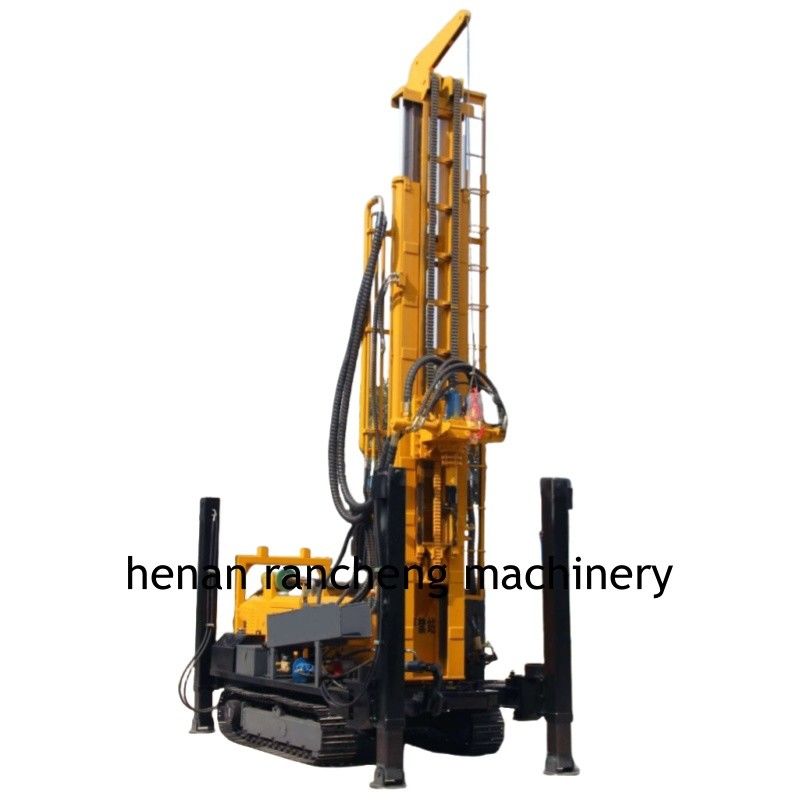

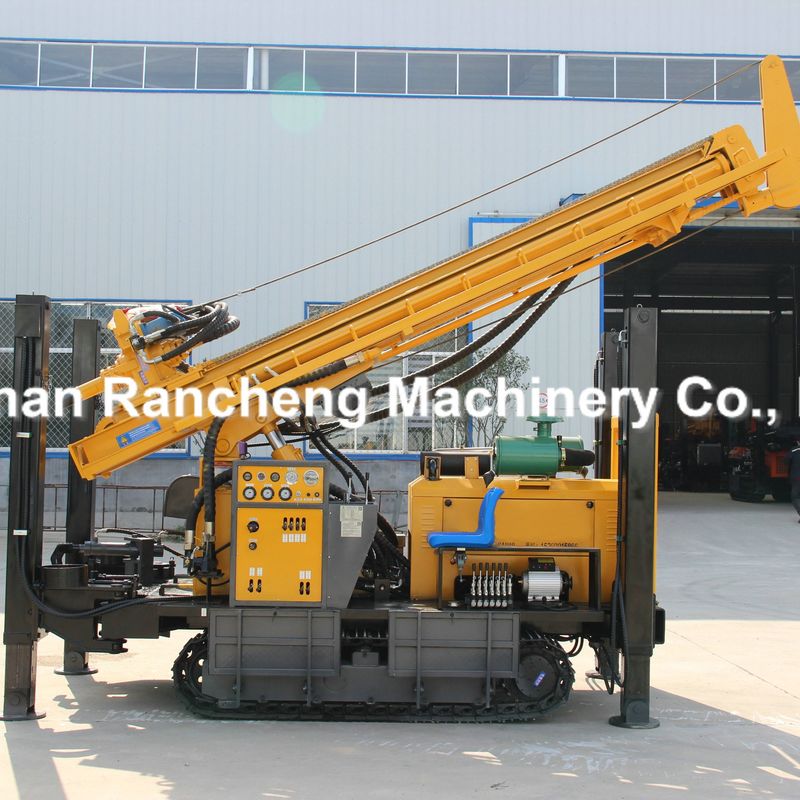

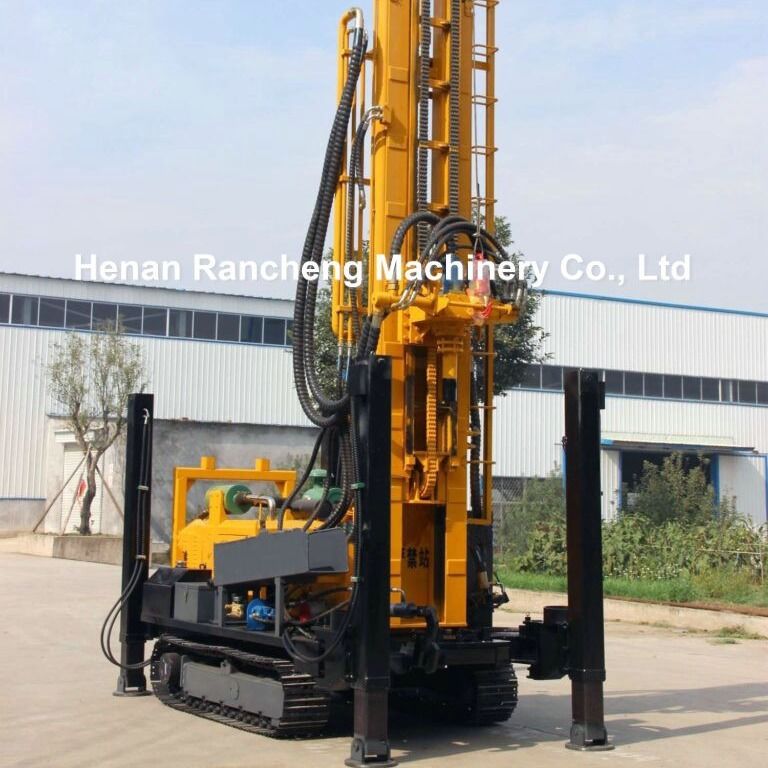

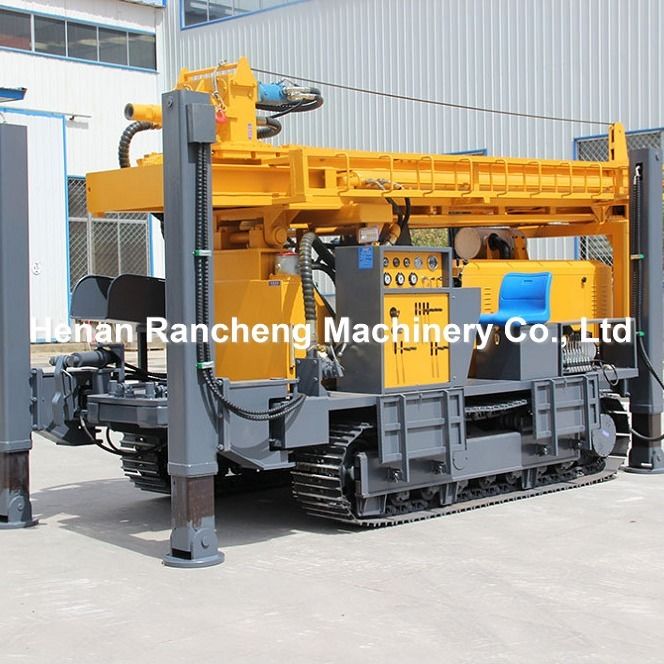

Machine picture display

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 2
