Name: 260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF260W
Availability: InStock

خونه > محصولات > ماشین حفاری سوراخ >

260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment

260m depth hydraulic water well drilling machine,fully automatic borehole drilling equipment,wheel-mounted water well drilling machine

fully automatic borehole drilling equipment

wheel-mounted water well drilling machine

محل منبع:

چین

نام تجاری:

RanCheng

گواهی:

CE, ISO 9001:2000

شماره مدل:

RCF260W

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

نام:

دستگاه حفاری چاه آب نصب شده چرخ هیدرولیک

مدل:

RCF260W

قطر سوراخ (چکش):

90-350 میلی متر

عمق حفاری:

260 متر

مصرف هوا:

17-35 متر مکعب در دقیقه

فشار:

1.7-3.0Mpa

برجسته کردن:

260m depth hydraulic water well drilling machine,fully automatic borehole drilling equipment,wheel-mounted water well drilling machine

fully automatic borehole drilling equipment

wheel-mounted water well drilling machine

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

قیمت

قابل مذاکره

جزئیات بسته بندی

می توان آن را با یک ظرف 20 اینچی حمل کرد

زمان تحویل

10-15 روز کاری

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

100Set در ماه

محصولات مرتبط

ویدیو

Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale

بهترین قیمت رو بدست بیار

ویدیو

RCF300WT Hydraulic Tractor Mounted Water Well Drilling Machine 100HP

بهترین قیمت رو بدست بیار

ویدیو

260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment

بهترین قیمت رو بدست بیار

ویدیو

ماشین حفاری سوراخ های فراگیر با کارایی بالا با چهار چرخ در حال نصب در عمق 220 متر موتور 65KW قدرتمند

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment

Machine Introduction

The RCF260W wheeled water well drill rig is lightweight, efficient, and versatile. It is primarily suitable for industrial and civil drilling, as well as geothermal drilling. Its compact design, fast drive, flexible maneuverability, and wide range of applications make it an ideal choice for water supply in mountainous areas and rock formations.

Our rigs are manufactured from high-quality materials and feature a modern, compact design, which improves efficiency, reduces failure rates, and offers excellent value for money. Thanks to positive customer feedback, our water well drill rigs have gained widespread market recognition.

This versatile water well drill rig can be used with an air compressor, a mud pump, or even standalone for dry hydraulic drilling. It is suitable not only for water well drilling, but also for all porous formation conditions.

Technical Parameters

Bore diameter(hammer)	90-350mm
Bore depth	260m
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Pipe diameter	76mm/89mm
Pipe length	1m,2m,3m
Push force	4T
Lifting force	15T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	24m/min
Fast feeding speed	35m/min
Max torque of rotary	4000-5300Nm
Rotary speed	45-70r/min
Hoisting force of winch	1.5T
Mud Pump flow	20L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4×1.85×2.3M
Weight	6500Kg
Diesel engine	70KW engine

Machine Application

This Water drilling machine is widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.

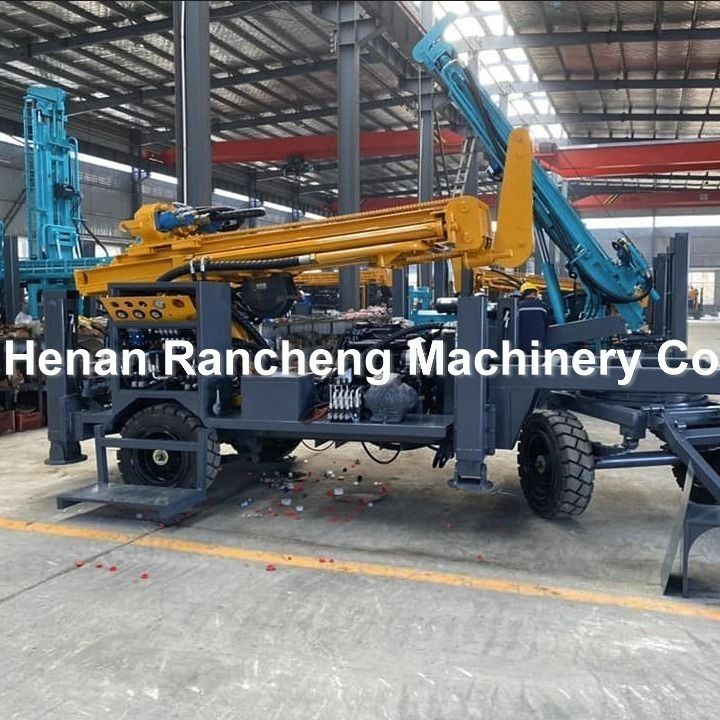

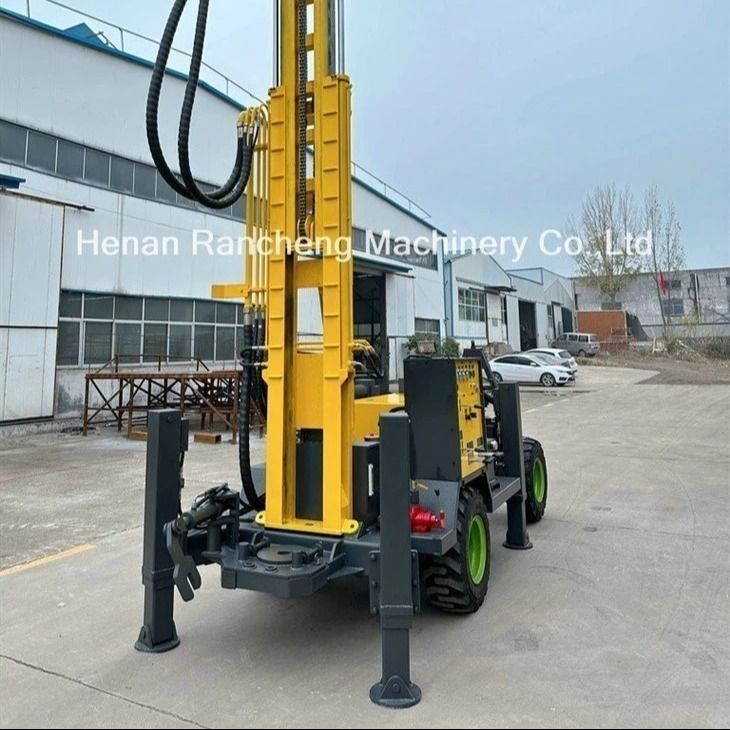

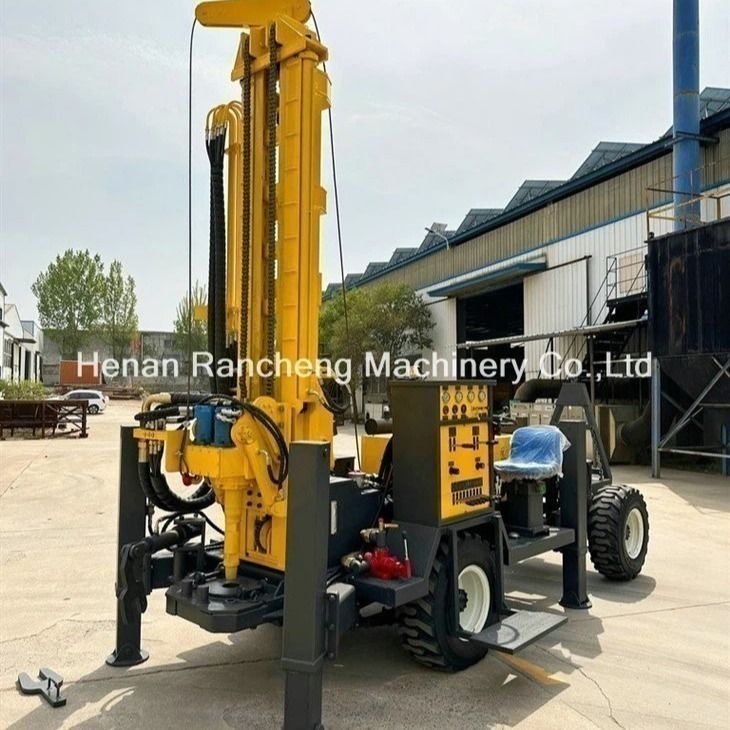

Machine Pictures

260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment 0
