Name: Water Well Drilling Machine For 800m Deep Drilling In All Types Of Soil 154KW Cummins
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF800C
Availability: InStock

خونه > محصولات > دستگاه حفاری چاه آب >

Water Well Drilling Machine For 800m Deep Drilling In All Types Of Soil 154KW Cummins

800m deep water well drilling machine,154KW Cummins water well drilling machine,all soil types water well drilling machine

154KW Cummins water well drilling machine

all soil types water well drilling machine

محل منبع:

چین

نام تجاری:

RanCheng

گواهی:

CE, ISO 9001:2000

شماره مدل:

RCF800C

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

نام:

دستگاه حفاری چاه آب

مدل:

RCF800C

زمین شناسی حفر:

همه نوع

سیستم حفاری و عملکرد:

وابسته به هیدرولیکی

حداکثر عمق سوراخ:

800 متر

قطر سوراخ:

140-500 متر

موتور دیزل:

154 کیلووات کامینز

بعد:

6300×2300×2650mm

برجسته کردن:

800m deep water well drilling machine,154KW Cummins water well drilling machine,all soil types water well drilling machine

154KW Cummins water well drilling machine

all soil types water well drilling machine

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

قیمت

قابل مذاکره

جزئیات بسته بندی

می توان آن را با یک کانتینر 40 اینچی حمل کرد

زمان تحویل

10-15 روز کاری

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

100Set در ماه

محصولات مرتبط

ویدیو

Water Well Drilling Machine For 800m Deep Drilling In All Types Of Soil 154KW Cummins

بهترین قیمت رو بدست بیار

ویدیو

200m Borehole Drilling Machine/Borewell/Hydraulic Crawler Mounted Pneumatic Water Well Drilling Rig Machine For Sale

بهترین قیمت رو بدست بیار

ویدیو

Water Well Drilling Machine for 800m Deep Drilling in All Types of Soil

بهترین قیمت رو بدست بیار

ویدیو

Industrial-Grade 280M Diesel Hydraulic Drill Rig Designed for Fast Penetration

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Water Well Drilling Machine For 800m Deep Drilling In All Types Of Soil 154KW Cummins

Product Specifications

Attribute	Value
Name	Water Well Drilling Machine
Model	RCF800C
Geology Drilled	All kind
Drill System and Operation	Hydraulic
Max Hole Depth	800m
Hole Diameter	140-500m
Diesel Engine	154KW Cummins
Dimension	6300×2300×2650mm

Machine Introduction

800-meter Water Well Drilling Rig - An Efficient and Reliable Tool for Groundwater Resource Development

Constructed from high-strength steel and equipped with an advanced hydraulic system, this 800-meter water well drilling rig is suitable for deep well drilling and can easily handle a variety of geological conditions, including hard rock and sand formations. Driven by a powerful diesel or electric motor, the rig provides strong drilling power and efficiency, with a maximum daily drilling depth of 80-120 meters. Its modular design allows for easy transportation and on-site assembly, and its user-friendly automatic control system reduces labor costs.

This rig is widely used in agricultural irrigation, mine dewatering, and drinking water supply projects in remote areas, helping to address water shortages. Its robust construction and low failure rate ensure long-term, stable operation, making it an ideal choice for deep well drilling.

Key Advantages: High drilling depth, high efficiency, high reliability, and easy maintenance

Detailed Specifications

Model	RC800C
Drilling way	Both mud pump drilling and air DTH drilling
Geology drilled	All kind
Drill system and operation	Hydraulic
Diesel engine	154KW Cummins
Max hole depth	800m
Hole diameter	140-500mm
Air consumption	17-42m³/min
Length of drilling pipe	1m/2m/3m/6m
Diameter of drilling pipe	102/108/114mm
Total Weight	13ton
Dimension (L * W * H)	6300×2300×2650mm

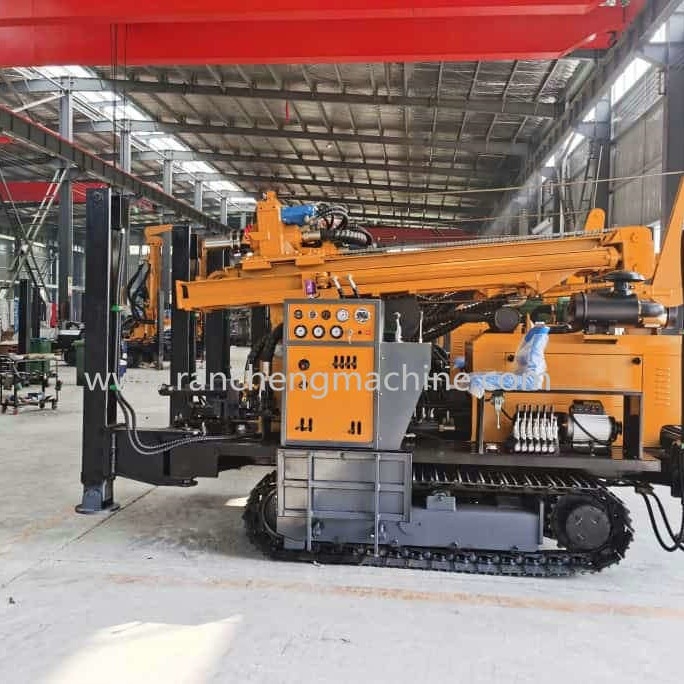

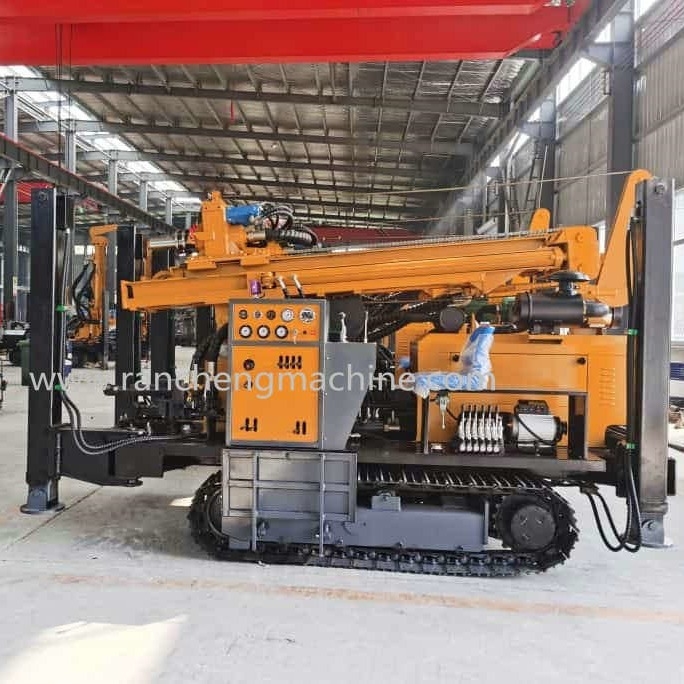

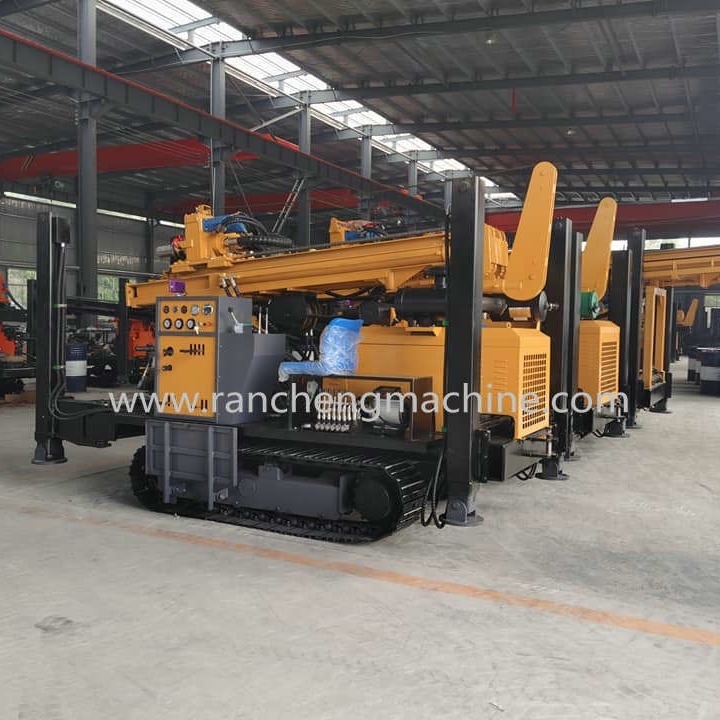

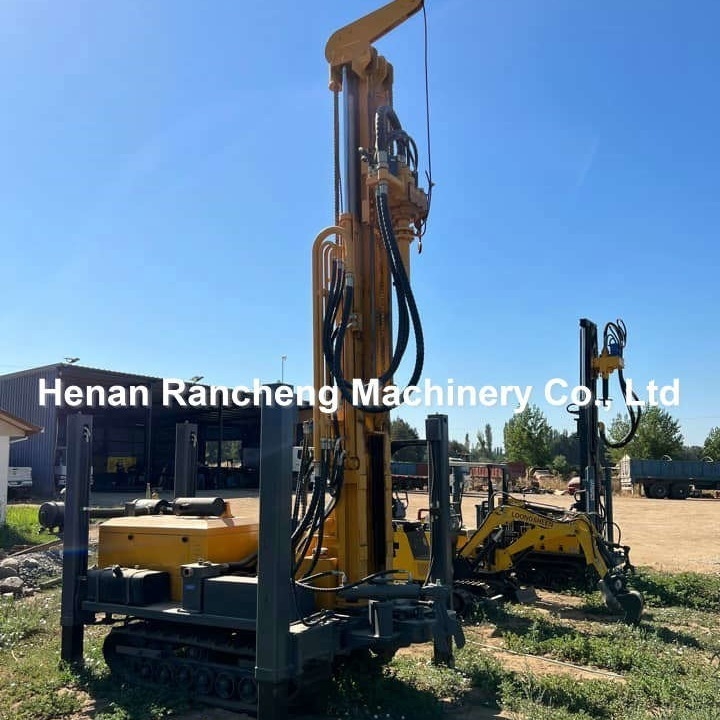

Machine Gallery

برچسب ها：

دستگاه حفاری نصب شده بر روی خزنده,تجهیزات حفاری چاه آب,تجهیزات حفاری چاه آب

800m deep water well drilling machine,154KW Cummins water well drilling machine,all soil types water well drilling machine

water well drilling equipment
