Name: Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: BW160
Price: 2380 USD
Availability: InStock

خونه > محصولات > پمپ گل حفاری >

Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump

Single Cylinder Piston Pump BW160H,160L/Min Flow Mud Pump,1.3MPa Pressure Drilling Pump

160L/Min Flow Mud Pump

1.3MPa Pressure Drilling Pump

Place of Origin:

China

نام تجاری:

RanCheng

گواهی:

CE, ISO 9001:2000

Model Number:

BW160

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

Model:

BW160

Flow rate:

160L/min

pressure:

1.3 mpa

Transmission power:

5.5KW

frequency of stroke:

147 times/min

برجسته کردن:

Single Cylinder Piston Pump BW160H,160L/Min Flow Mud Pump,1.3MPa Pressure Drilling Pump

160L/Min Flow Mud Pump

1.3MPa Pressure Drilling Pump

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

قیمت

USD2380

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

محصولات مرتبط

ویدیو

پمپ پیستون تک سیلندر BW160H - جریان 160L / دقیقه، فشار 1.3MPa

بهترین قیمت رو بدست بیار

ویدیو

پمپ پیستون تک سیلندر BW160H - جریان 160L / دقیقه، پمپ گل فشار 1.3MPa

بهترین قیمت رو بدست بیار

ویدیو

پمپ گل حفاری 185 کیلووات قدرت 7 مگاپاسکال حداکثر فشار برای حفاری چاه آب

بهترین قیمت رو بدست بیار

ویدیو

185KW قدرت 7MPa حداکثر فشار حفاری پمپ گل برای پروژه های چاه آب عمیق 1000m 7200kg

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump

Product Specifications

Attribute	Value
Model	BW160
Flow rate	160L/min
Pressure	1.3 MPa
Transmission power	5.5KW
Frequency of stroke	147 times/min

Product Overview

The BW160 mud pump is a single-cylinder piston pump equipped with a single-cylinder diesel engine, operating in first gear at a constant speed. With a flow rate of 160 liters per minute and a maximum pressure of 1.3 MPa, it is primarily used in various drilling projects.

Technical Parameters

Parameter	Value
Model No.	BW160
Cylinder diameter	95mm
Piston Stroke	90mm
Frequency of stroke	147 times/min
Flow rate	160 L/min
Pressure	1.3 MPa
Power input	5.5 kW
Diameter of suction pipe	50mm
Diameter of discharge pipe	40mm
Overall dimensions (L×W×H)	850×600×550mm
Weight	130kg

Key Features

Compact design with small volume and light weight
Simple operation and easy relocation
Capable of transporting mud with sand content less than 5% or other liquids with pH value of about 7-8

Applications

The BW160 mud pump is a portable unit primarily designed to match with small-diameter geological exploration and engineering exploration drilling rigs with drilling depth of less than 300m.

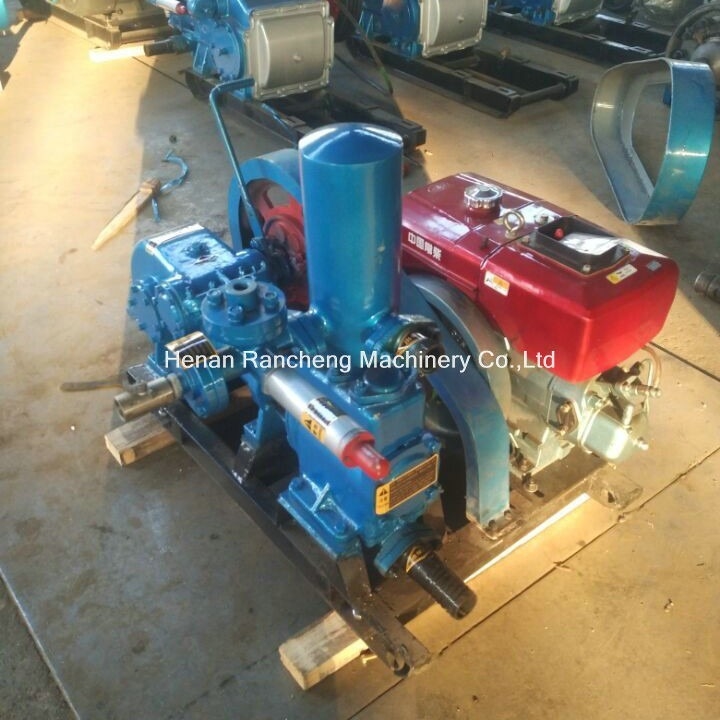

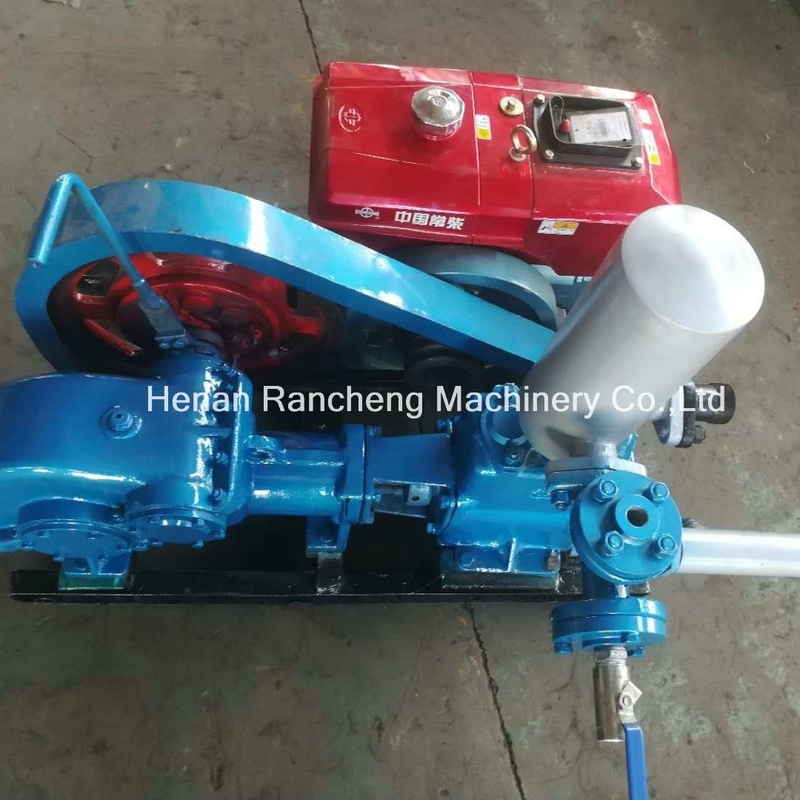

Product Images
