Name: Trailer Type Water Well Drilling Rig 200m Drilling Depth Easy To Operate Both Mud Pump And Air Compressor
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF220W
Availability: InStock

خونه > محصولات > ماشین حفاری سوراخ >

Trailer Type Water Well Drilling Rig 200m Drilling Depth Easy To Operate Both Mud Pump And Air Compressor

trailer type water well drilling rig,200m drilling depth borehole machine,mud pump air compressor drilling rig

200m drilling depth borehole machine

mud pump air compressor drilling rig

محل منبع:

چین

نام تجاری:

RanCheng

گواهی:

CE, ISO 9001:2000

شماره مدل:

RCF220W

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

نام:

دکل چاه آب هیدرولیک

حداکثر گشتاور چرخشی:

3400-4700 نیوتن متر

سرعت چرخشی:

45-70r/min

نیروی بالابرنده وینچ:

1.5T

برجسته کردن:

trailer type water well drilling rig,200m drilling depth borehole machine,mud pump air compressor drilling rig

200m drilling depth borehole machine

mud pump air compressor drilling rig

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

قیمت

قابل مذاکره

جزئیات بسته بندی

می توان آن را با یک کانتینر 20 اینچی حمل کرد

زمان تحویل

10-15 روز کاری

شرایط پرداخت

T/T، وسترن یونیون

قابلیت ارائه

100 مجموعه در ماه

محصولات مرتبط

ویدیو

Trailer Water Well Driling Rig With 132KW Cummins Diesel Engine For 600m Water Drilling

بهترین قیمت رو بدست بیار

ویدیو

Trailer Type Water Well Drilling Rig 200m Drilling Depth Easy To Operate Both Mud Pump And Air Compressor

بهترین قیمت رو بدست بیار

ویدیو

Hydraulic Tractor Mounted Water Well Drilling Machine 3400mm Feed Stroke

بهترین قیمت رو بدست بیار

ویدیو

RCF220W راه حل کامل برای ماشین حفاری حفاری در صنعت

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Trailer Type Water Well Drilling Rig 200m Drilling Depth Easy To Operate Both Mud Pump And Air Compressor

Machine Introduction

Our RCF220W wheeled water well drilling rig is a lightweight, efficient and versatile drilling equipment. The rig is mainly suitable for industrial and civil drilling, geothermal drilling, and has the advantages of compact structure, fast drilling speed, flexible movement and wide application range. Pneumatic water well drilling rigs are especially suitable for water extraction operations in mountainous areas and rock formations.

Made of high-quality materials, with a stylish and compact design, the drilling rig is more efficient, has a lower failure rate, is more economical and durable, and has a high overall cost performance. Our water drilling rigs have received positive feedback from most customers and have been truly verified by the market.

Technical Parameters

Bore diameter(Hammer)	90-300mm
Bore depth	220m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Pipe diameter	76mm/89mm
Pipe length	1m,2m,3m
Lifting force	13T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	24m/min
Fast feeding speed	35m/min
Max torque of rotary	3400-4700Nm
Rotary speed	45-70r/min
Hoisting force of winch	1.4T
Mud Pump flow	250L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4×1.75×2.25M
Weight	5500Kg
Diesel engine	65KW Quanchai engine

Application

The rig is versatile and can be used with air compressors, mud pumps, and even dry hydraulic drilling methods. The rig is not only designed for water well drilling, but can also be used under various conditions depending on the purpose of the hole.

It is widely used in industrial and agricultural water conservancy projects, test wells and other exploration drillings. It is especially suitable for geothermal heating drilling, and is also suitable for various projects such as engineering foundation reinforcement and loose gravel rock drilling.

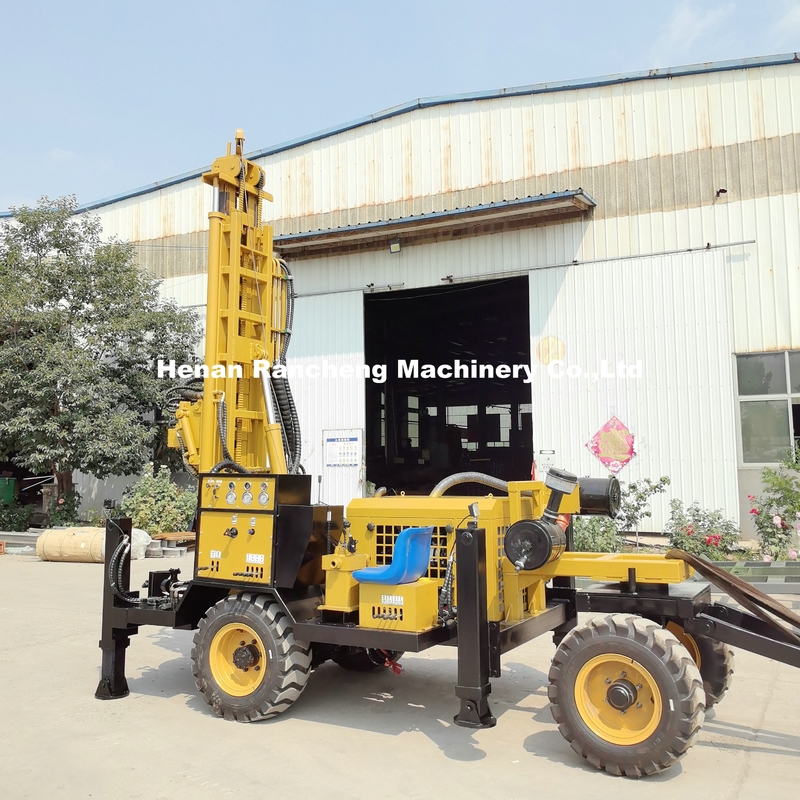

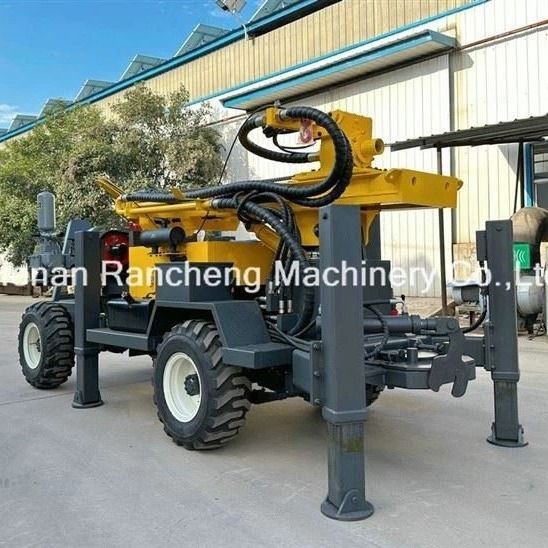

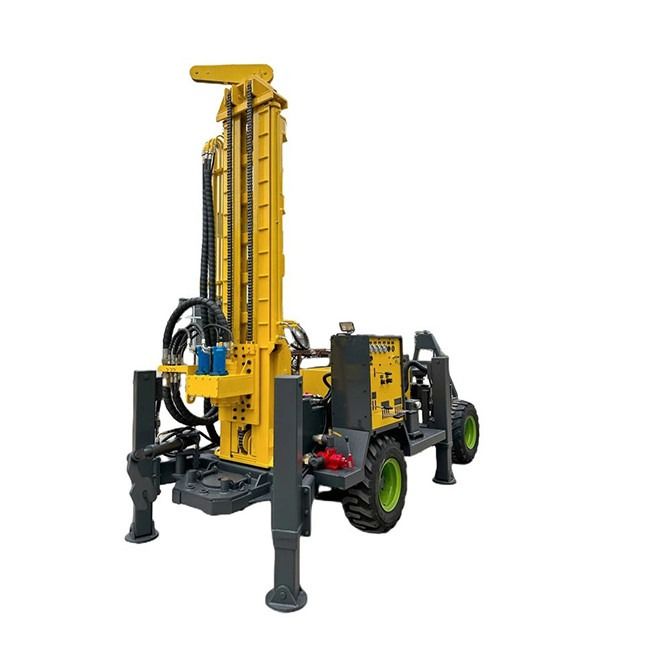

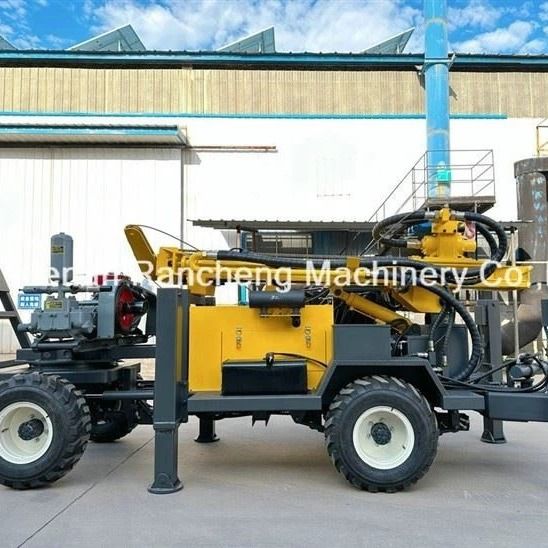

Machine Pictures
